Privacy mode

Privacy mode adds a multi-agent privacy pipeline between MMORE’s retriever and the answer model, so only cleaned and checked context ever reaches the LLM.

It runs at query time only: the vector DB keeps the raw corpus unchanged, and the pipeline works on the top-k chunks retrieved for each request.

Command:

mmore rag --config-file examples/rag/config.yaml --privacy examples/rag/privacy.yaml

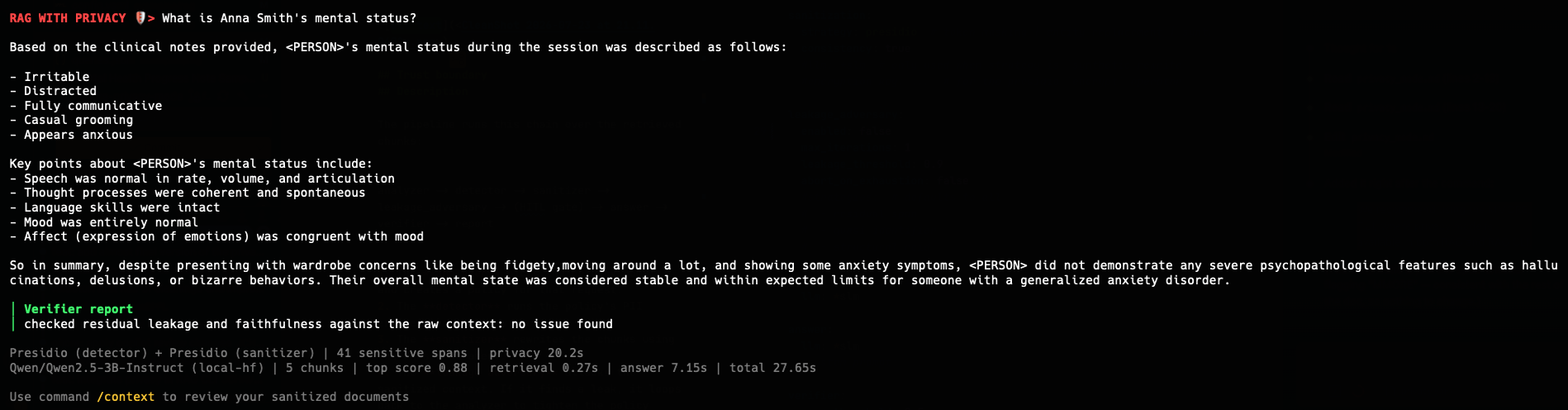

We recommend using the mmore TUI, where privacy mode is available in both RAG and RAG CLI.

Description

The pipeline runs this chain over the retrieved chunks:

analyzer -> detector -> sanitizer -> leakage_adversary -> (HITL gate) -> answer -> verifier -> report

1. The analyzer picks the privacy domain and creates a policy for that request.

2. The detector runs the policy’s PII engine over each raw chunk.

3. The sanitizer rewrites the chunks using the chosen strategy.

4. The leakage adversary attacks the sanitized context. If it finds a leak, it loops back to the analyzer to tighten the policy (limited by leakage_adversary.max_iterations). When an escalation changes only the sanitization side, detection is skipped and the previous spans are reused. If the loop exhausts its iterations without the adversary clearing the context, the request is aborted as unsafe by default; set leakage_adversary.abort_on_exhaustion: false to instead proceed to the gate with the best-effort sanitized context.

5. The HITL gate is the trust boundary. With interactive: false it approves automatically and the graph finishes in one pass. With interactive: true it pauses before any context leaves for the answer model: in local mode a terminal prompt shows the PII-free summary and asks to approve, revise (with optional feedback), or reject; in api mode the gate auto-approves with a startup warning. Revise feedback can be descriptive: the analyzer maps it onto the available tools (detection engine, sanitization strategy, threshold level, presidio anonymization operator, a custom rewrite instruction for the synthetic-rewrite LLM, or a custom detection instruction for the LLM detector).

6. The answer model sees only the sanitized context, the sanitized query, and the domain prompt. It never reads the raw chunks or the raw query.

7. The verifier checks the answer for leftover PII and faithfulness, and raises type and count warnings to guide the user.

Configuration

privacy.yaml is loaded directly as PrivacyConfig, so its fields sit at the top level (no privacy: wrapper). See examples/rag/privacy.yaml for a full example. Main fields:

• domain: global, healthcare, or humanitarian. Leave it out to let the analyzer guess it.

• context_analyzer.llm: the analyzer’s LLM. The detector, sanitizer, adversary, and verifier fall back to it when they don’t set their own.

• interactive: the HITL gate. In local mode it prompts in the terminal (queries run one at a time); in api mode it auto-approves with a warning. Set false for unattended runs.

• detection.engine: one engine, either presidio, gliner, llm, or openai_filter. When using presidio, MMORE relies on spaCy’s en_core_web_lg model; if it is missing, the Presidio engine may download it on first use.

• sanitization.strategy: token_masking, entity_replacement, synthetic_rewrite, or presidio.

• sanitization.encryption_key: AES key used when the presidio strategy runs its encrypt operator (e.g. after gate feedback asks for encryption). Unlike masking or hashing, encryption is reversible: whoever holds this key can decrypt the values in the sanitized context later. Without it a random key is generated per run and discarded, so the encrypted values are as unrecoverable as a hash.

• leakage_adversary.strategies: which attack vectors the adversary probes. Omit to run all (residual_span, quasi_identifier, structural_reid, context_reconstruction, membership_inference). Pass a subset (e.g. [residual_span, quasi_identifier]) to narrow and speed up the probe.

• leakage_adversary.abort_on_exhaustion: whether to abort the request as unsafe when the adversary never clears the context within max_iterations (default true). Set false to proceed to the gate with the best-effort sanitized context instead.

• answer.llm: any LLMConfig backend (API or self-hosted/vLLM).

• verifier.checks and verifier.warn_threshold: the advisory checks run over the answer. Omit checks to run all (residual_leakage, faithfulness). You can also pass a subset.

Code layout

Everything lives under src/mmore/privacy/:

Path	Role
config.py	PrivacyConfig and its enums: what a privacy.yaml is loaded into
pipeline.py	the graph wiring
runner.py	runs the compiled graph for one query
gate_ui.py	terminal front-end for the HITL gate (raw/sanitized difference)
report_builder.py	turns the final graph state into a ReportRecord
agents/	one module per graph node: analyzer, detector, sanitizer, adversary, gate, answer, verifier, plus the shared BaseAgent, PrivacyState and tool registry
schemas/	the data formats in the pipeline: policy, risk, leakage, verification, report
detection/	the PII detection engines, each registered as an agent tool
sanitization/	the sanitization strategies, each registered as an agent tool
domains.py	the per-domain profiles (label set, prompts, and defaults)
model_cache.py	pipeline cache so engines and agents share loaded models
dspy_llm.py	DSPy backend: builds an LM from an LLMConfig for specific output formats
ux.py	reports each agent’s stage to the RAG progress display

Report schema

Each request adds one ReportRecord, shown on the RAG output as privacy_report:

Field	Meaning
request_id, timestamp	request identity
domain	resolved privacy domain
detection_engine	engine used
detection	span count and per-entity-type counts
sanitization_strategy	strategy applied
adversary_iterations, human_iterations	policy escalations triggered by the adversary agent vs. by the user
gate_outcome	approved, re-looped, aborted, or rejected
answer_backend, answer_model	which model answered
verifier_warnings	verifier warnings as kind and count
verifier_checks_run, verifier_checks_failed	which advisory checks ran and which errored
hitl_events	list of gate interactions, one per human decision (each with its decision and any written revise feedback)
sanitized_query	the query after sanitization
stage_seconds	time spent per agent
outcome	returned, returned-with-warnings, or aborted-unsafe

See also

• RAG

• LLM as a judge
